Plastic Reel FRP Strength Member 5.00 Mm For Fiber Optical Cables

Name: Plastic Reel FRP Strength Member 500 Mm For Fiber Optical Cables
Brand: Dingrong
Price: 1 USD

Brand Name : Dingrong

Model Number : Φ0.4-Φ5.0

Certification : ISO9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 5000Km/Month

Delivery Time : 30days

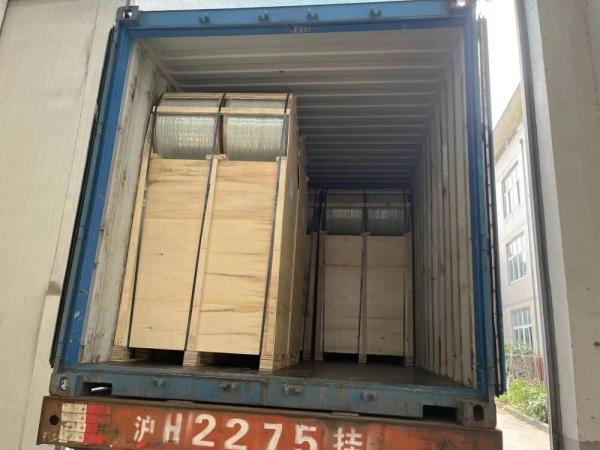

Packaging Details : Plywood reel or plastic reel

Product Name : FRP Strengthen Core

Material : FRP Fiber Reinforced Plastic

Function : Strengthen

Packing : Plywood reel or plastic reel

Spool length : 50.4km/reel, 25.2km/reel or customized

High temperature Bending test (100℃, 24h, 30D) : no cracks, no uneven spots, surface smooth

Contact Now

Non-Metallic FRP Rod Central Strength Member CSM

The strength member is structurally vital and protective for cables. The structural strength of the strength member is one important indicator for the mechanical properties of fiber optic cables. As the fastening component, the strength member supports the majority of structural strength of fiber optic cables and plays a vital role in enhancing the tensile strength and impact strength.

Currently used strength member for fiber optic cables are metallic and non-metallic strength member. Single steel wire or steel strand is frequent working as metallic reinforcement, while non-metallic strength member is from fiber glass reinforced plastic (FRP rod) or aramid yarn or aramid rod. FRP is often located in the central or two flanks of cables, aramid fiber is in the central or between two sheaths.

Properties of Non-metallic FRP Rod Strength Member

A. High strength
FRP is stronger than structural steel on a pound-for pound basis.

B. Light weight
FRP is 20-25% the weight of steel and 70% the weight of aluminum. FRP are easily transported, handled and lifted into place.

C. Anti-corrosion
FRP will not rot and are impervious to a broad range of corrosive elements. This feature makes FRP a natural selection for indoor or outdoor structures in corrosive environments.

D. Electro-magnetic transparency
FRP are transparent to radio waves, microwaves and other electromagnetic.

E. Non-conductive
FRP has low thermal/ electrical conductivity.

F. Dimensional stability
The coefficient of thermal expansion of FRP is slightly less than steel and significantly less than aluminum.

Name	frp rod
Brand	OEM
材Material	Fiber glass and resin
Feature	High tensile strength, high modulus
Surface Treatmen	Smooth
Dimensions	0.40-5.00 mm
Standard	ISO/GB
Delivery Length	50km/reel, 25km/reel or customized
Application	Strength Member for Fiber Optic Cables
Technique	Pultrusion
Certification	ISO9001:2008, SGS
Packing	Plywood reel or plastic reel
QC System:	100% Strict Inspection
Operating Tempera	-40°C~+60°C
color	white

Product Description:

Non-metallic FRP Rod strength member, usually located at the center or the periphery of optical cables, serves as the important component of optical cables by supporting optic fiber bundles and enhancing cables tensile strength.
